Ankle Details

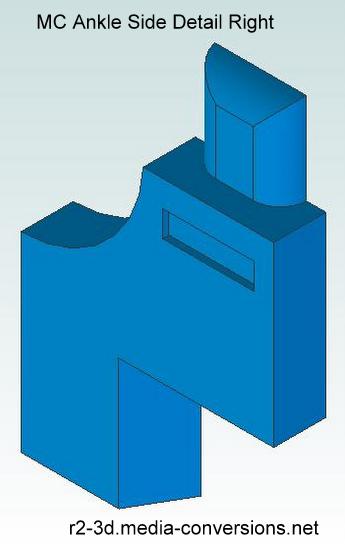

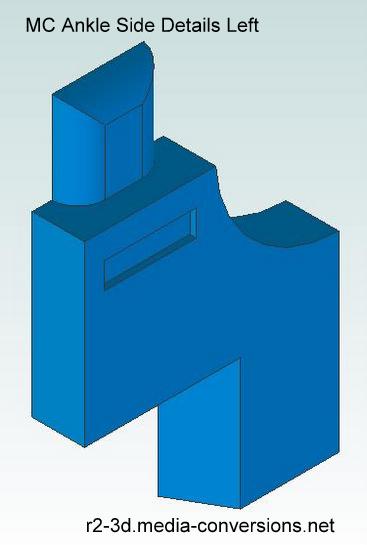

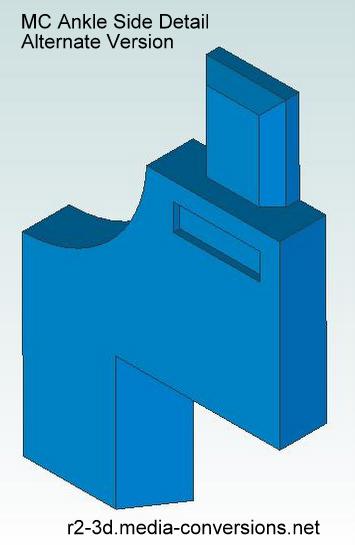

Click on the image to open a 3D .pdf version of the design.

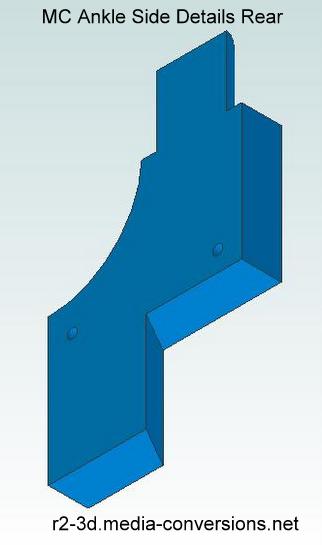

As you rotate the image around you will notice two mounting holes in the back. These are used to align the part while the glue sets.
You can download a template for the mounting holes with the other files on the link below.

You can download models in STEP AP203 (.stp) format in English (inch) units as well as in 3D.pdf format: click here.
