Shoulder Hydraulics

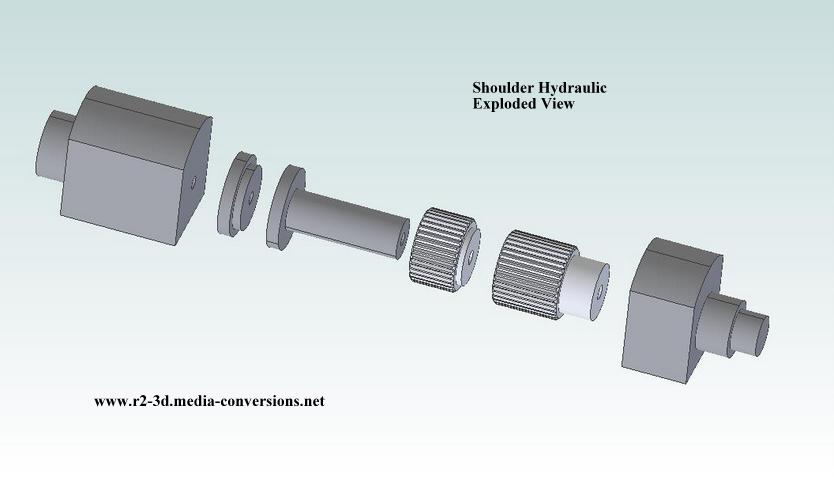

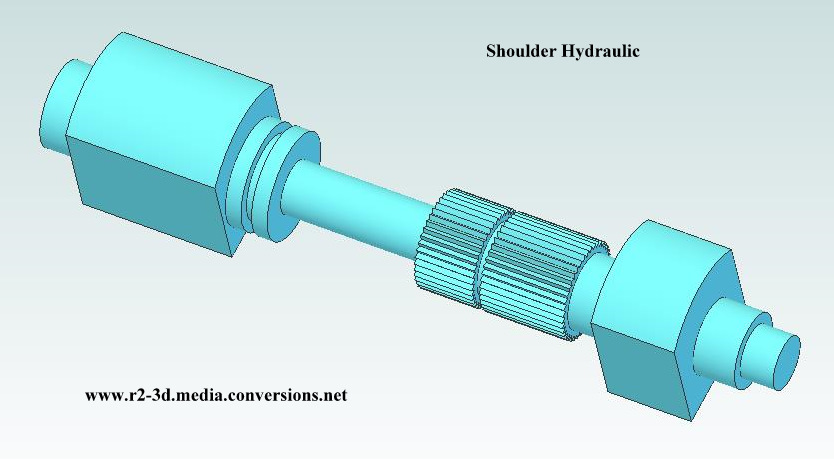

Click on the image to open a 3D .pdf version of the design.


I need some help with this part. While the number of knurles is specified at 42, there is no information on their depth. If anyone knows what the depth should be please send me a note at: fpirz (at) media-conversions (dot) net. I've included a copy of the BC drawing in the download for reference. Thanks. - F.Pirz


You can download models in STEP AP203 (.stp) format in English (inch) units as well as in 3D.pdf format: click here.
